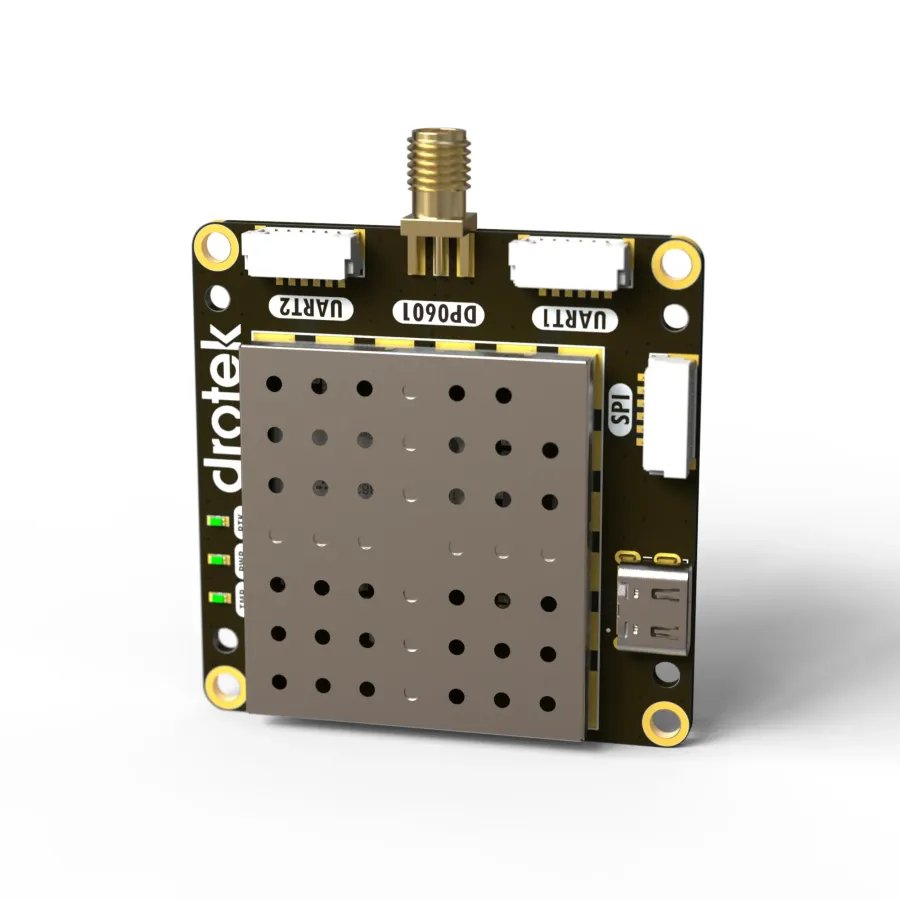

DP0601 RTK GNSS F9P drotek

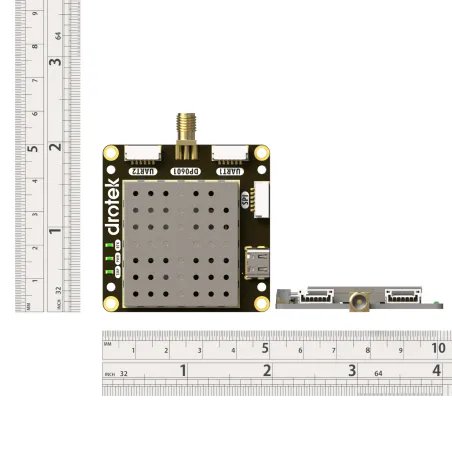

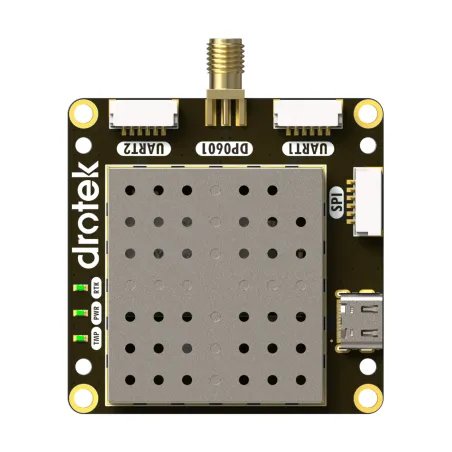

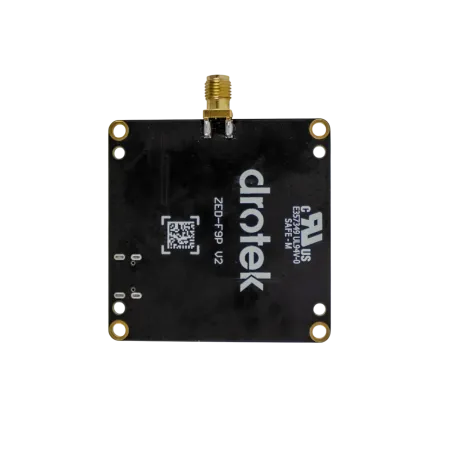

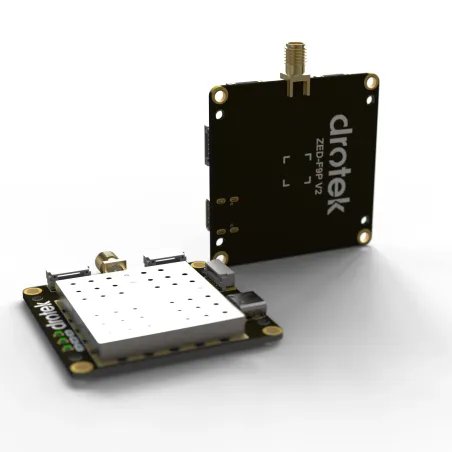

RTK DP0601 GNSS (ZED-F9P) by Drotek
DP0601 RTK GNSS F9P drotek
RTK DP0601 GNSS (ZED-F9P) by Drotek

DP0601 RTK GNSS (XL F9P)

2 Reviews
0891B08A
€169.90

RESELLERS ::

-> MyBot Shop

Case

Quantity Unit discount You Save
10 5% €84.95
50 10% €849.50
100 15% €2,548.50
200 20% €6,796.00

Description

DP0601 positioning module features u-blox RTK ZED-F9P receiver platform, which provides multiband GNSS to high volume industrial applications.

Drotek-DP0601-RTK-GNSS-F9P

Enjoy fast convergence times and high update rate for highly dynamic applications. Get all major constellations reception (GPS, GLONASS, Galileo , BeiDou, plus QZSS reception) owing to its multi-band RF front-end architecture.

The next level of scalable GNSS high precision technology

+ Increases high precision performance in difficult environments by leveraging a greater diversity of satellite signals.

+ Supports a variety of modern correction service technologies (RTCM v 3.x, SSR, PPP).

+ Keep providing accurate positioning in environments that are out of reach of GNSS signals (tunnels, parking garages, urban canyons with bridges) with additional inputs from inertial sensors (based on dead reckoning algorithms).

+ Integrates advanced jamming and spoofing detection to achieve highest levels of security.

DP0601 Applications

DP0601 Applications

Industrial navigation and tracking

Unmanned autonomous vehicle (UAV)

Ground robotics navigation

Heavy machine control for agriculture and construction

DP0601 RTK ZED-F9P GNSS enables precise navigation and automation of moving machinery in industrial and consumer grade products in a compact surface mounted form factor. The module includes Moving Base support, allowing both Base and Rover to move while computing a centimeter-level accurate position between them

DP0601 RTK ZED-F9P GNSS enables precise navigation and automation of moving machinery in industrial and consumer grade products in a compact surface mounted form factor. The module includes Moving Base support, allowing both Base and Rover to move while computing a centimeter-level accurate position between them. Moving Base is ideal for UAV applications where the UAV is programmed to follow its owner or to land on a moving platform. It is also well suited to attitude sensing applications where both Base and Rover modules are mounted on the same moving platform and the relative position is used to derive attitude information for the vehicle or tool. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup.

 Moving Base is ideal for UAV applications where the UAV is programmed to follow its owner or to land on a moving platform. It is also well suited to attitude sensing applications where both Base and Rover modules are mounted on the same moving platform and the relative position is used to derive attitude information for the vehicle or tool. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup.

This package includes :

FEATURES

DP0601 RTK ZED-F9P GNSS enables precise navigation and automation of moving machinery in industrial and consumer grade products in a compact surface mounted form factor. The module includes Moving Base support, allowing both Base and Rover to move while computing a centimeter-level accurate position between them. Moving Base is ideal for UAV applications where the UAV is programmed to follow its owner or to land on a moving platform. It is also well suited to attitude sensing applications where both Base and Rover modules are mounted on the same moving platform and the relative position is used to derive attitude information for the vehicle or tool. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup.

This package includes :

1 x DP0601 RTK GNSS

1 x DP0601 RTK GNSS

3x JST-GH 6pins cables

3x JST-GH 6pins cables

antennas-drotek-electronics

Add the relevant antenna to your module

Maximize your GNSS receiver's positioning performance with our optimal GPS / GNSS antennas for your applications. Discover our selection covering GPS, GLONASS, COMPASS and Galileo. Protect your module against intermodulation and saturation, provide superior multi-path rejection and axial ratio with our Multi-band GNSS Antennas.

Documentation

drotek DP0601 RTK ZED-F9P GNSS get started
drotek DP0601 RTK ZED-F9P GNSS datasheet
drotek zed-f9p DP0601 RTK ZED-F9P GNSS tutorials installation user guide

ZED-F9P high precision GNSS module : U-blox Data SheetProduct Summary

Product Details

14 Items
8944595424662

Reviews (2)

2 Reviews

We have reached 1 cm accuracy in an open sky with your white antenna. That works perfectly!
By Elia on 16/06/2020

Thanks to this great piece of hardware. My team has tested on a tractor and the results are very impressive.
By Peter on 25/05/2020
